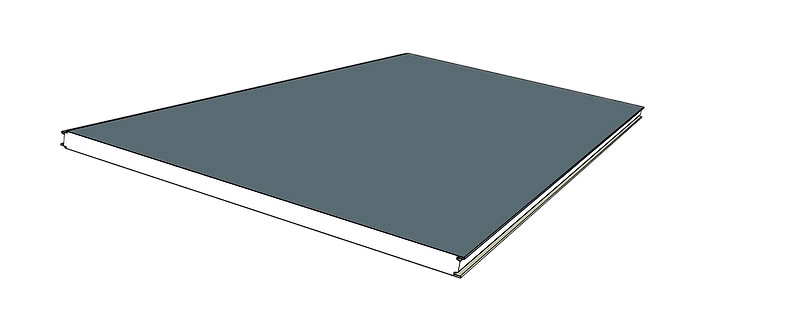

DeltaCool Wall Panels
DeltaCool™ is the perfect solution to your insulated walling project, with a durable metal skin, factory bonded to a choice of core- Expanded Polystyrene Fire Retardant (EPS-FR), Polyisocyanurate (PIR) or Mineral Wool (MW).
DeltaCool™ can be used in a variety of applications, including :
- Cold rooms and freezers
- Agricultural rooms and buildings
- Modular buildings
- Offices and homes
- Food processing
DeltaCool™ consists of three main components : a roll-formed metal skin on two sides, factory bonded to a choice of core- Expanded Polystyrene Fire Retardant (EPS-FR), Polyisocyanurate (PIR) or Mineral Wool (MW).
Expanded Polystyrene Fire Retardant (EPS-FR) offers high R-Values for thermal efficiency and excellent sound dampening properties. A range of thicknesses are available, starting at 35mm. Each increase in core thickness offers greater insulating capabilities and additional strength. Two steel thicknesses are also available to suit any application – 0.4mm and 0.6mm.
Polyisocyanurate (PIR) at 0.025 W/mK offer much higher thermal efficiency than Expanded Polystyrene Fire Retardant (EPS-FR) at 0.038W/mK allowing a thinner core to be utilised. The DeltaCool-PIR panels have been tested and certified at the Factory Mutual American facility. In addition the panels are rated Group 1 classification as per AS ISO 9705.
Mineral wool is also offered as an alternative core material when a certified fire wall is required. DeltaCool-MW has a Group 1 fire rating as per AS ISO 9705.
All DeltaCool™ panels are 1.2m wide and can be rolled to your required length.
DeltaCool™ 0.6 is available in different colour options to match the requirements of your project. Colours can be mixed to create a wide range of combinations. DeltaCool™ 0.4 is available in off-white on both sides.
Fully engineered and tested to Australian Standards, together with a 20 year warranty, DeltaCool™ will stand the test of time in your insulated walling project.
